Mengshen Digital Tachometer, 2 in 1 Non-Contact & Contact Tach Rotatio

$26.99 Free Shipping

Shipping From: US, CA, MX, EU, UK Estimated Delivery: 3-7 days

Quantity

Buy from

Accurate RPM Meter: With high speed laser aim technology and instant readings from 2 to 99,999 rpm. This handheld tachometer is highly accurate, can be a good helper for you.

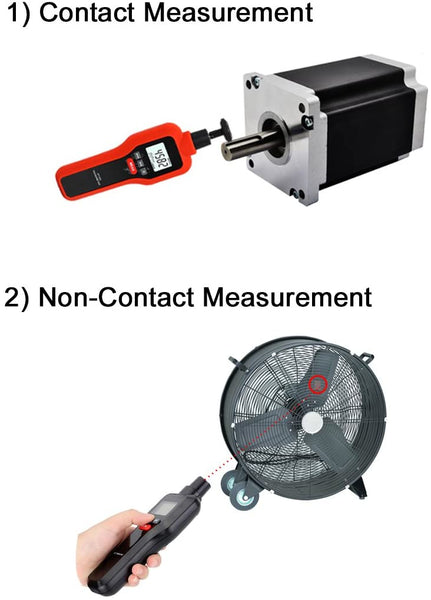

Non-contact & Contact Measurement: Dual measurement modes. Support Non-contact measurement, 4 different connecting heads that comes with package are used for contact measuring.
Large LCD Display: Compact design with large LCD screen, easy to get readings for measurement and diagnostic purposes. Contact Measurement Range: 2~ 20,000 RPM; Non-contact Measurement Range: 2~ 99,999 RPM.
Widely Application: The device can be used to measure the RPM of the Engine, Motor, Drill Press, Lathe, Car, Fan And Wash Machine. It can also measure the surface velocity of the conveyor.

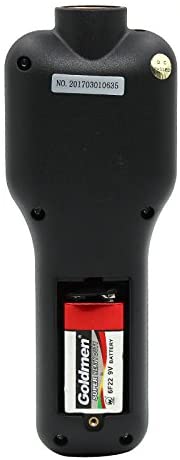

Power Supply: Powered by one 9V DC Battery(Included)

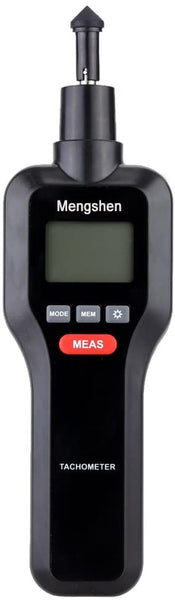

Thanks for coming, you deserve the best! This is Mengshen's Handheld Professional Digital Tachometer M522.

Specifications:

Before using, you can practice or test it on conduction motors.
Usually keep device close to the object measured to reduce the size of the laser dot can get a more accurate readings.
The purpose of the reflective tape is to offer a good contrast between background and measuring area, but if the part measured has other reflective surfaces, like shiny metal, please apply a non-reflective tape(black or a dark color tape) to act as background.
If reflective tape ran out, white paint is an easy substitute for it.


Large LCD Display Sensor LCD display Mode key Memory view key Backlight key Measuring key Battery compartment	Non-contact Measurement Open battery cover by screwdriver, install a 9v battery, Cut a square off from the reflective tape and paste it on the object to be measured, Press "MEAS" button to aim the reflective tape with laser.	Contact Measurement Install the adapter on the instrument, aim on and contact the axis of the object measured, then the data will display on the LCD screen. Measuring type: Rotational speed(RPM), counter rotating(REV), frequency(Hz), surface speed	Widely Application It is widely used to measure the RPM of the Engine, Motor, Drill Press, Lathe, Car, Fan And Wash Machine. It can also measure the surface velocity of the conveyor. Power Supply: 9V battery(Included)

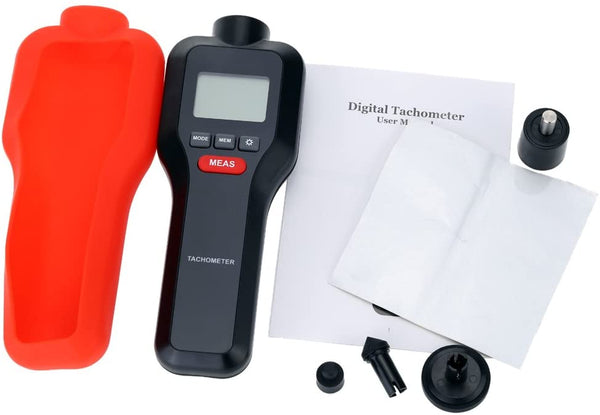

Package Content:

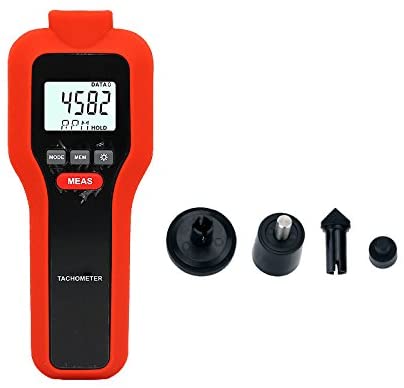

1 * Tachometer, 1 * Protection Cover, 4 * Connecting Head , 1 * Reflective tape, 1 * User's Manual


	Digital Temperature & Humidity Meter	Digital Psychrometer	Decibel Meter	Infrared Temperature Gun	Wind Speed Meter	Air Pressure Meter
Part Number	MS-M86	MS-M350	MS-M80A	MS-M816	MS-M9819	MS-M1890
Measuring Range	-4°F to 176°F(-20°C to 80 °C)	-22°F to 199°F(-30°C to 100°C)	30 to 130dB	-58°F to 1202°F(-50°C to 650°C)	0.4 to 30.00m/s	±13.79kPa

Share this Product
