Mengshen Digital Manometer, Professional Digital Air Pressure Meter & Differential Pressure Gauge Kit - ±13.79kPa / ±2 psi
Regular price
$35.99
Free Shipping
Shipping From: US, CA, MX, EU, UK
Estimated Delivery: 3-7 days

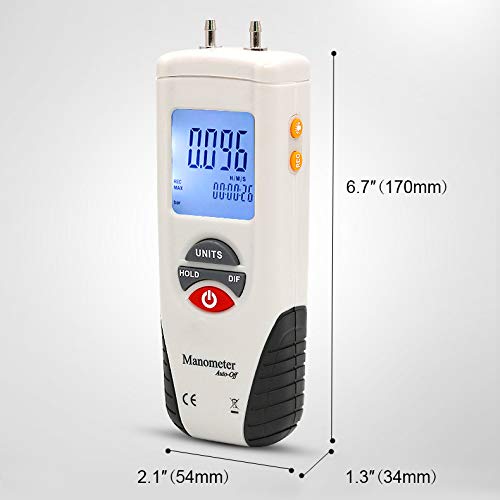

- 1) Mini & Portable: 5.9 x 2.2 x 1.4 inches, support one hand operation.
- 2) Meter Screen: Large LCD screen with backlight, convenient to operate and read.
- 3) Measuring Range: ±13.79 kPa / ±2 psi / ±55.4 H2O, accuracy ±0.3%.
- 4) Pressure Units: 11 kinds of units are selectable, H2O, Psi, Mbar, Bar, kPa, inHg, mmHg, Ozin2, ftH2O, cmH2O and KgCm.
- 5) Wide Application: A indispensable testing tool for HVAC technician, operation maintenance engineers and researchers. (HVAC: Heating, Ventilation and Air Conditioning)
Professional Digital Manometer for Gas Pressure Measurement on Furnace/Water Heaters/ Automobiles
- Mini & Portable: 5.9 x 2.2 x 1.4 inches, support one hand operation.
- Meter Screen: Large LCD screen with backlight, convenient to operate and read.
- Measuring Range: ±13.79 kPa / ±2 psi / ±55.4 H2O, accuracy ±0.3%.
- Pressure Units: 11 kinds of units are selectable, H2O, Psi, Mbar, Bar, kPa, inHg, mmHg, Ozin2, ftH2O, cmH2O and KgCm.
- Wide Application: A indispensable testing tool for HVAC technician, operation maintenance engineers and researchers. (HVAC: Heating, Ventilation and Air Conditioning)
Specifications
- Display: Large LCD with backlight
- Accuracy: ±0.3% FSO (25°C)
- Resolution: inH2O- 0.01 , cmH2O - 0.1, PSI - 0.001, inHg - 0.1...and others, please refer the manual
- Repeatability: ±0.2% (Max ±0.5% FSO)
- Linearity/Hysteresis: ±0.29% FSO
- Maximum Pressure rating: 10 psi (but not the range of measurement)
- Response Time: 0.5 second typical
- Low Battery Indicator: Yes
|
|
|
|
|---|---|---|

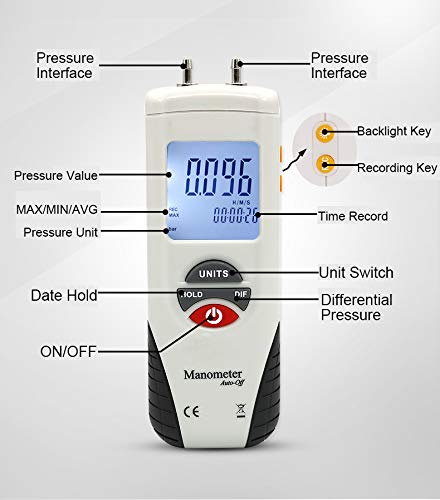

Large LCD with Backlight and Auto Off functionWithout any operation, device will auto off after 20 minutes to save energy. Backlight function makes it easy to get readings even in the dark. |
11 Selectable UnitsUsed for measuring Differential, Positive and Negative pressure. 11 selectable units: inH2O, psi, bar, mbar, kPa, inHg, mmHg, ozin2, FtH2O, cmH2O, kgcm2. |

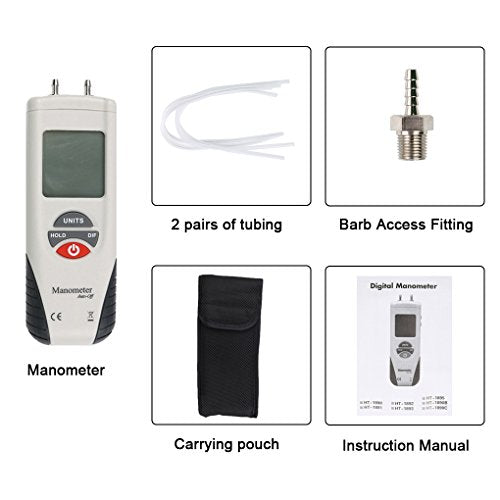

Package Included
|
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| Digital Temperature & Humidity Meter | Digital Psychrometer | Infrared Temperature Gun | Digital Tachometer | Wind Speed Meter | Air Pressure Meter | |
| Part Number | MS-M86 | MS-M350 | MS-M816 | MS-M522 | MS-M9819 | MS-M1890 |
| Measuring Range | -4°F to 176°F(-20°C to 80 °C) | -22°F to 199°F(-30°C to 100°C) | -58°F to 1202°F(-50°C to 650°C) | Contact:2 to 20000RPM; Non-contact:2 to 99999RPM | 0.4 to 30.00m/s | ±13.79kPa |
